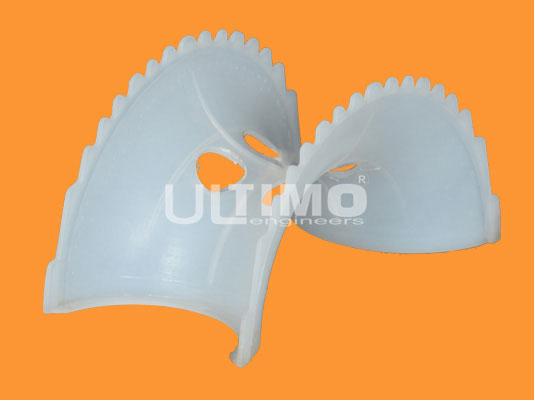

FEP Super Intalox Saddles
Send Enquiry
- Excellent chemical resistance. Resistance to almost all organic chemicals, acids & alkalis. This also includes Hydrofluoric Acid (HF), Fluorinated Chemicals, Bromine (Br2) and Brominated Compounds.
- We use virgin FEP raw material for the manufacturing of FEP Super Intalox Saddles.
- No recycled or reprocessed raw material is being used.
- FEP Super Intalox Saddles can be used for the distillation or scrubbing of highly corrosive or highly pure chemicals and bulk drugs.
- FEP Super Intalox Saddles are suitable for FEP lined distillation columns or gas scrubbers, FEP coated distillation columns or scrubbers and glass lined columns or gas scrubbers.
- FEP Super Intalox Saddles can handle corrosive chemicals in Pharmaceutical, Bulk Drugs, Organic Chemicals; Inorganic Chemicals Include Bromine and Bromine Derivatives, Chlorine & Chlorine Derivative, Fluorine & Fluorinated Derivatives.
- Temperature limit: suitable up to 140-150 ºC (Write to us as it may vary with different chemicals)
Available size: 25mm FEP Super Intalox Saddles , 38mm FEP Super Intalox Saddles, 50mm FEP Super Intalox Saddles, 75MM FEP Super Intalox Saddles, 90MM FEP Super Intalox Saddles
Technical Data
| Size | Nos. / Cu.m. | Surface m2 / m3 | Voidage % | Packing Factor F |
| 25 mm | 56,000 | 210 | 90 | 33 |
| 38 mm | 12,000 | 140 | 91 | 25 |
| 50 mm | 6,000 | 110 | 93 | 21 |
| 75 mm | 1,350 | 89 | 94 | 16 |
