PVC Pall Rings, Gujarat, India.

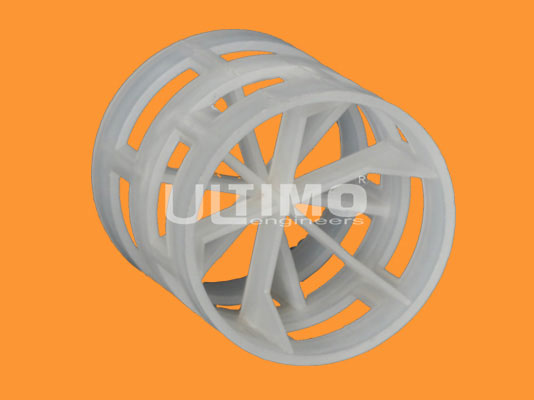

PVC Pall Rings

home Pall Rings PVC Pall Rings

PVC Pall Rings

PVC Pall Rings Send Enquiry

Most of the production of thermoplastics consists of polypropylene grades in various versions. In addition to polyethylene, high-performance plastics are also used.. Regenerates are only processed upon special request.

Depending on the stress caused by temperature and chemical attack, the following quality grades of polypropylene must be distinguished:

MOCs:

ENGINEERING PLASTICS SUITABILITY
POLYPROPYLENE Inert to almost all Acids and Dilute Caustic Solutions (low pH) upto 70 Deg. C (158 Deg. F)
HDPE PALL RINGS Inert to almost all Acids and Dilute Caustic Solutions (low pH) upto 55 Deg. C (131Deg. F)
PVDF PALL RINGS Inert to almost all Acids and Strong Caustic Solutions (low pH) upto 130 Deg. C (266 Deg. F)
PFA PALL RINGS Inert to almost all Acids and Dilute Caustic Solutions (low pH) upto 210 Deg. C (410 Deg. F)
PTFE PALL RINGS Inert to almost all Acids and Dilute Caustic Solutions (low pH) upto 210 Deg. C (410 Deg. F)

Technical Data

Size Nos. / Cu.m. Surface m2 / m3 Voidage % Packing Factor F
16 mm 2,10,000 338 88 95
19 mm 1,00,000 240 88 68
25 mm 51,000 210 89 52
38 mm 13,500 135 90 32
50 mm 6,500 100 92 25
75 mm 1,800 92 93 20
90 mm 1,200 85 93 16
