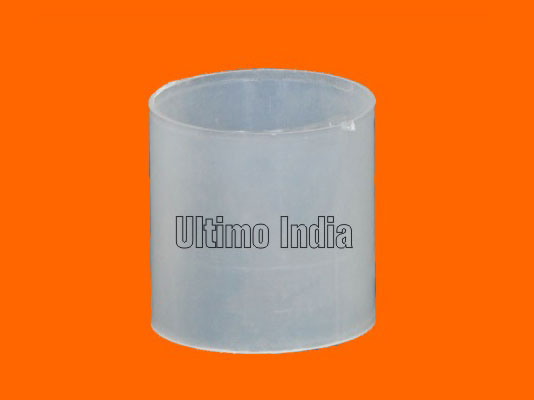

PVDF Raschig Ring

home Raschig Rings PVDF Raschig Ring

PVDF Raschig Ring

PVDF Raschig Ring Send Enquiry
  • Excellent chemical resistance. Resistance to many organic chemicals, acids & alkalis. This also includes Hydrofluoric Acid (HF), Fluorinated Chemicals, Bromine (Br2) and Brominated Compounds. Compatibility checking for chemicals is must before selecting PVDF as an MOC for tower packings.
  • We use virgin PVDF raw material for the manufacturing of PVDF Raschig Rings.
  • No recycled or reprocessed raw material is being used.
  • PVDF Raschig Rings can be used for the distillation or scrubbing of highly corrosive or highly pure chemicals and bulk drugs.
  • PVDF Raschig Rings are suitable for PVDF lined distillation columns or gas scrubbers, PVDF coated distillation columns or scrubbers and glass lined columns or gas scrubbers.
  • PVDF Raschig Rings can handle corrosive chemicals in Pharmaceutical, Bulk Drugs, Organic Chemicals; Inorganic Chemicals Include Bromine and Bromine Derivatives, Chlorine & Chlorine Derivative, Fluorine & Fluorinated Derivatives.
  • Temperature limit: suitable up to 140-150 ºC (Write to us as it may vary with different chemicals)

Available size: 25mm PVDF Raschig Rings, 38mm PVDF Raschig Rings, 50mm PVDF Raschig Rings

Technical Data

Size Nos. / Cu.m. Surface m2 / m3 Voidage % Packing Factor F
25 mm 51,000 210 86 137
38 mm 13,500 135 90 82
50 mm 6,500 100 92 57
